LC/MS

The LCMS-2050 single quadrupole mass spectrometer combines the user-friendliness of an LC detector with the excellent performance of MS to provide a complete package of easy to use high-level performance and compactness. To make it accessible to all users, the system is enhanced with technology and functions to ensure that even technicians unfamiliar with mass spectrometers can easily and efficiently perform analysis. While delivering operational convenience on par with an LC detector.

The LCMS-9050 is a quadrupole Time-of-Flight (Q-TOF) mass spectrometer system designed with technologies developed for Shimadzu LCMS series models and that results in among the highest mass accuracy stability levels available. The stable positive/negative high-speed polarity switching technology enables the simultaneous analysis of positive ions/negative ions, contributing to new applications development and heightened analysis efficiency.

The LCMS-8060NX is a triple quadrupole mass spectrometer with world-class sensitivity and detection speeds. It boasts increased robustness and ease of use as well as Analytical Intelligence to maximize your laboratory’s output. The culmination of Shimadzu's expertise in triple quadrupole mass spectrometry, Robustness and ease of use in high sensitivity analysis and Streamlined analytical process all togather improve your workflow efficiency.

The LCMS-8060 features an optimized ion guide and new technologies incorporated in the ion transport optical system. The ion sampling efficiency and ion focusing capability are significantly increased, to achieve improved sensitivity. This flagship model in the UFMS series features both the world's highest level of sensitivity and the world's highest throughput. It is capable of detecting ultra trace components in complex matrices, which have been difficult to detect to date, both quickly and with high sensitivity.

The LCMS-8050 from Shimadzu achieves a high level of sensitivity thanks to the heated ESI probe and the UFsweeper III collision cell. The ultrafast measurement technology (the UF Technology) has further evolved so measurements can now be performed even faster, without sacrificing data quality. At the same time, more compounds can now be measured in simultaneous qualitative and quantitative analysis.

The LCMS-8045 Triple Quadrupole LC-MS/MS from Shimadzu is equipped with a heated ESI probe, high-temperature heating block, desolvation line (DL) and drying gas that act to promote desolvation and prevent contamination due to the penetration of liquid droplets into the MS unit. This improves the robustness, so reliable and high-accuracy data can be obtained over the long term. The LCMS-8045 also achieves the world's fastest scan speed (30,000 u/sec) and polarity switching speed (5 msec). These enable ultra-high-speed, high-sensitivity analysis.

Shimadzu's LCMS-8040 was designed to provide Ultrafast MRM transition speeds, up to 555 MRMs per second (dwell times of 1 msec and pause times of 1 msec). In addition, the LCMS-8040 features the polarity switching at 15 msec and high speed scanning rate of 15,000 u/sec. By incorporating newly improved ion optics UF-Lens™ and UFsweeper™ II collision cell technology, the LCMS-8040 provides higher multiple reaction monitoring (MRM) sensitivity. This higher sensitivity expands the potential range of LC/MS/MS applications.

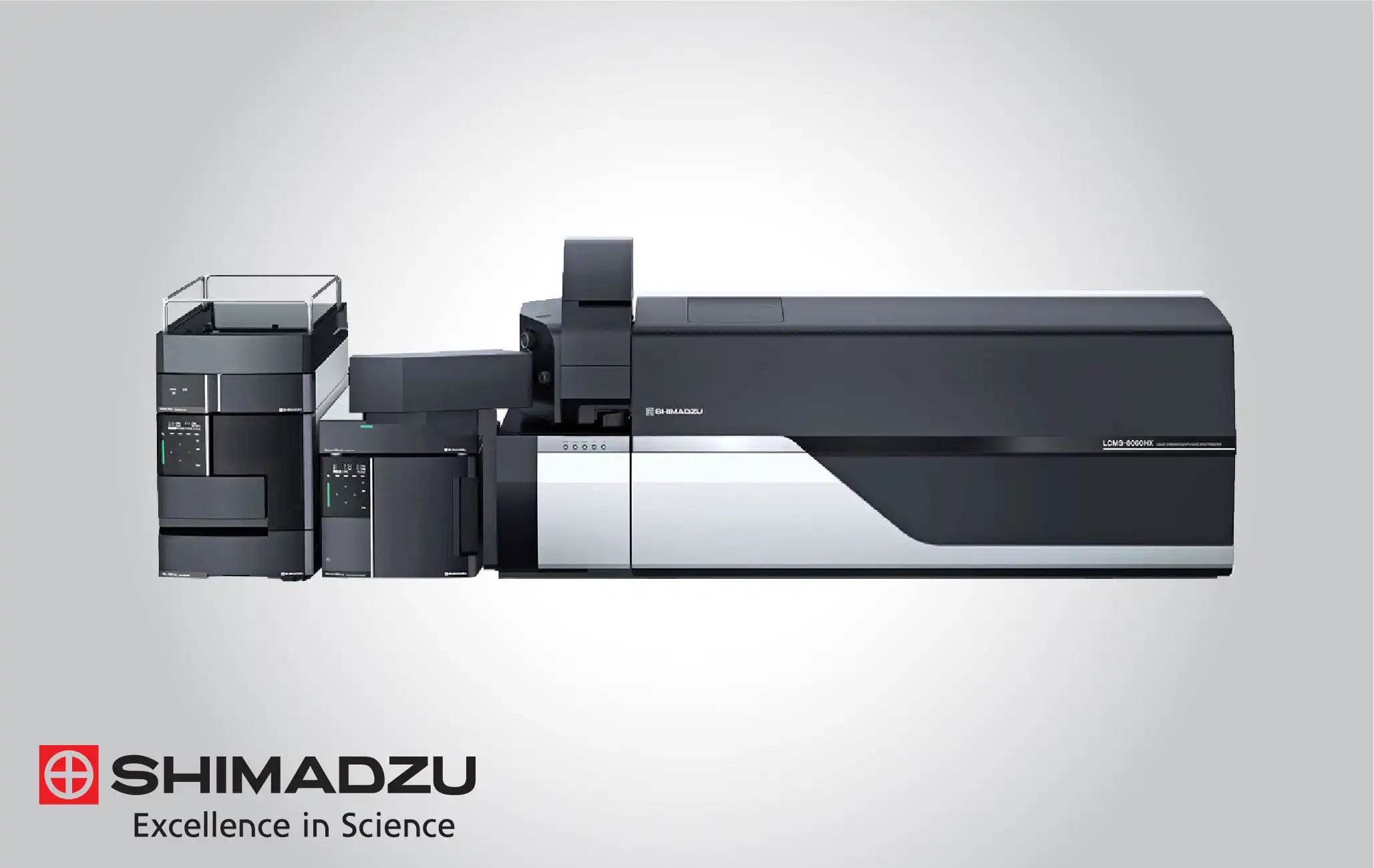

Shimadzu's Nexera Mikros microflow LC/MS system offers a balanced solution to increased sensitivity with less compromise to throughput and robustness, using flow rates from 1 to 500 μL/min and column I.D. from 0.1 to 1 mm. It achieves stable and sensitive quantitative analysis through robust performance of microflow solvent delivery, optimized ion source design, the unique UF-Link column connection, and system variety that supports a wide range of applications.

LCMS-2020 from Shimadzu is optimized for the Prominence UFLC/UFLCXR Ultra Fast Liquid Chromatograph. Novel patent-pending technologies offer significantly enhanced scan speed and positive-negative ion polarity switching time, which are essential for UFLC, and simultaneously boost sensitivity. The LCMS-2020 combines the excellent compound selectivity that is a feature of the mass spectrometer with significantly enhanced total productivity – from method development to analysis.

The LCMS-9030 quadrupole time-of-flight (Q-TOF) mass spectrometer is a powerful instrument that integrates the world's fastest and most sensitive quadrupole technology with TOF capabilities for accurate mass measurement. It provides superior sensitivity for quantitative and qualitative analysis of samples over a wide concentration range, including ultra-trace compounds. Patented technologies ensure high resolution and excellent mass measurement accuracy (MMA), supporting structure elucidation and identification of unknown compounds.

Probes allows extremely small sample volumes to be selected and introduced into the MS unit for analysis, where the 8060 kit installed can acquire trace sample quantities using a probe and analyze component masses in the MS unit. On the other hand, fully automated sample preparation module for LCMS can perform blood coagulation analysis. Besides that, LC/MS/MS cell culture media analysis platform are capable of obtaining temporal change profiles for up to 95 culture supernatant components.
