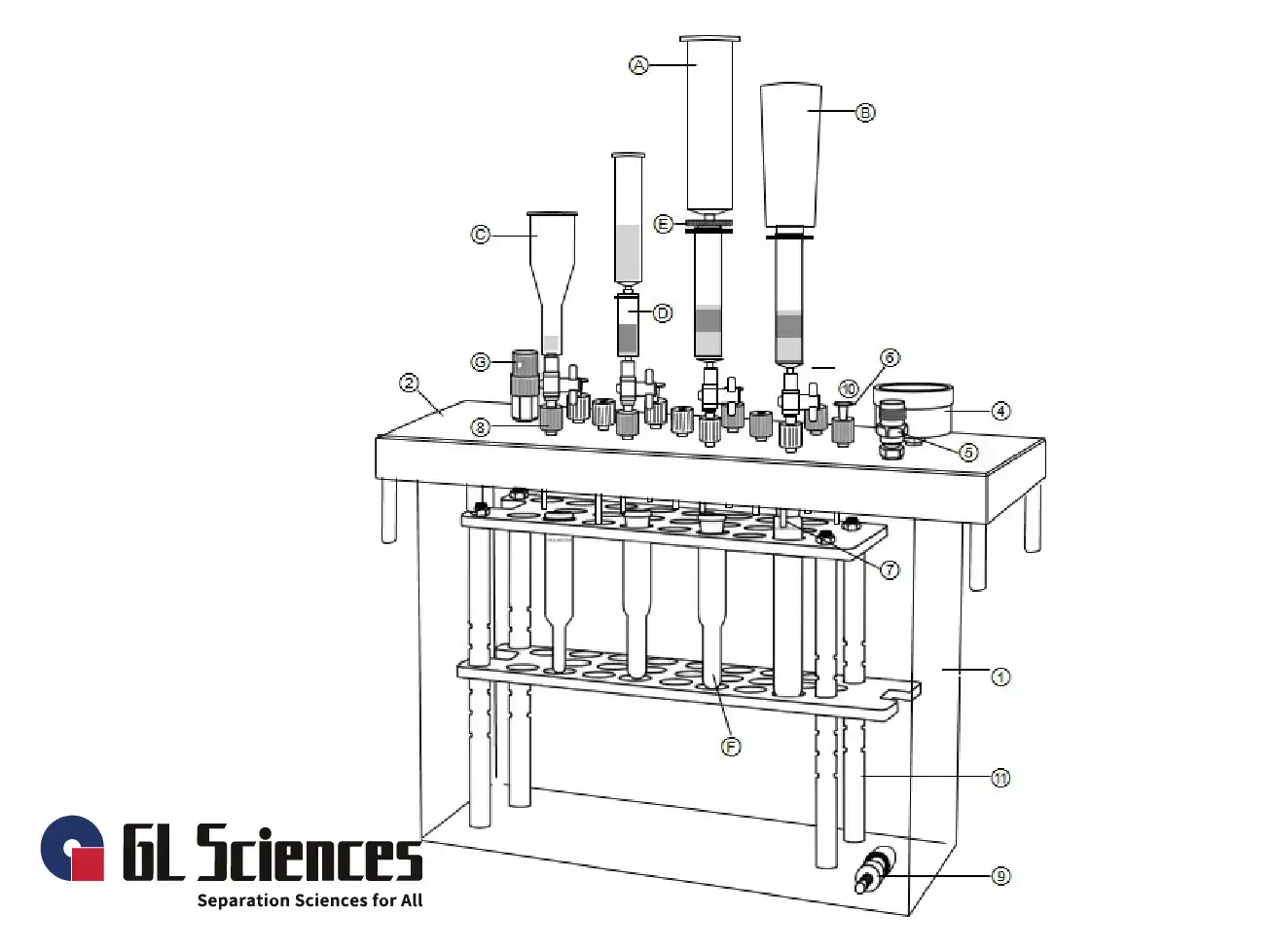

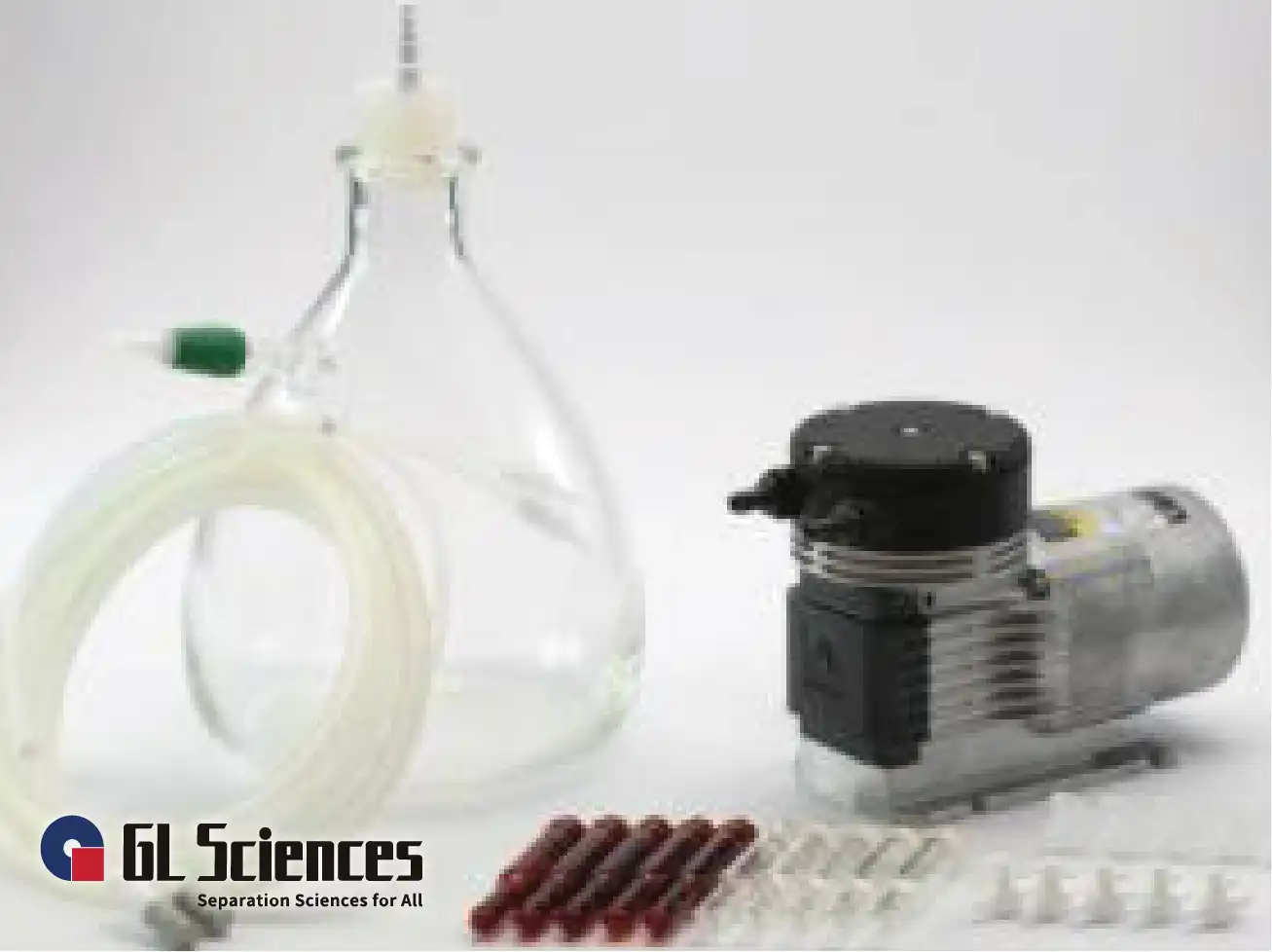

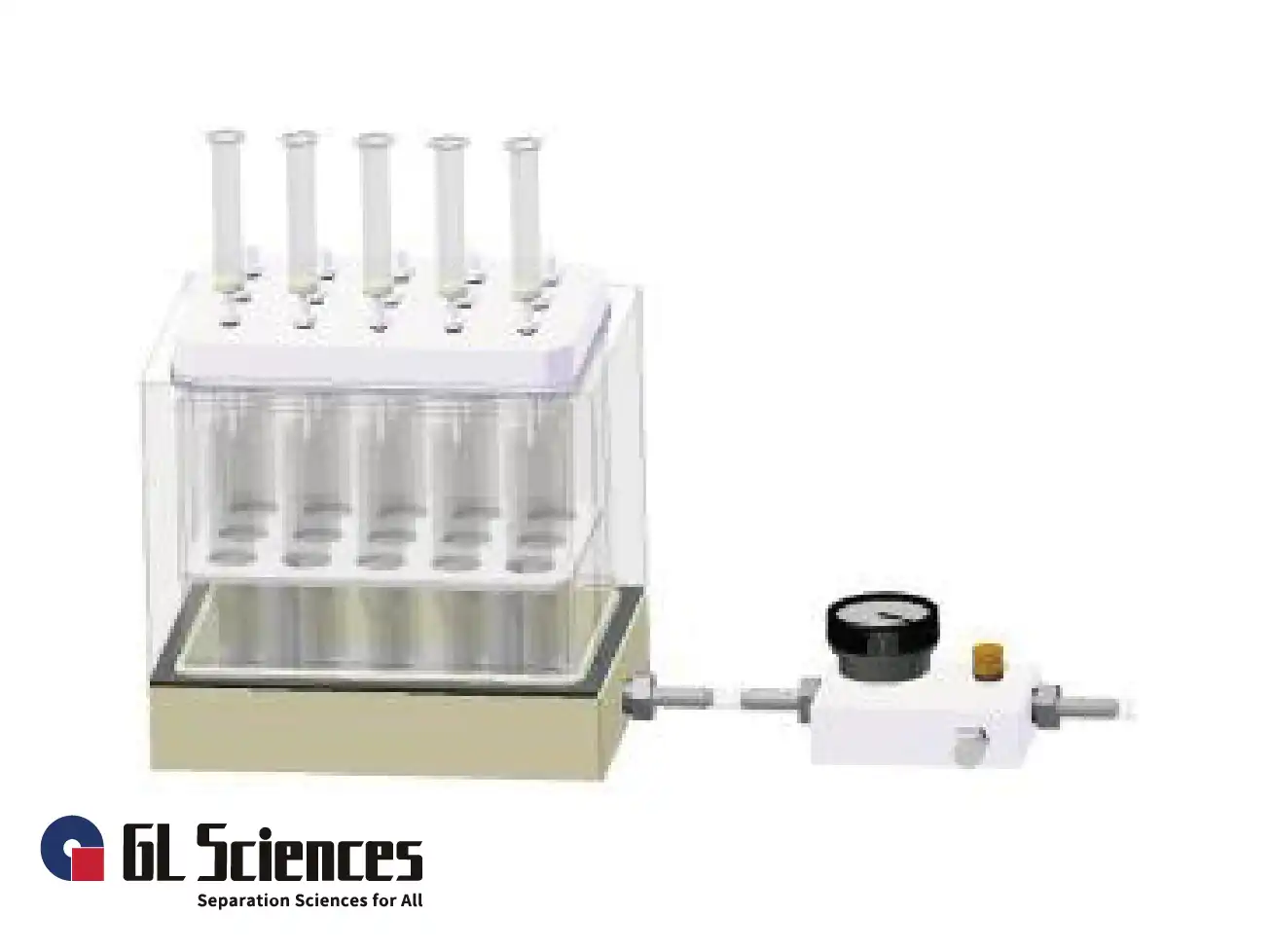

Vacuum Manifold Systems for Multi-Sample Throughput

Technically, the vacuum manifold serves as the primary interface for parallel sample processing. GL Sciences designs these systems to accommodate multiple cartridges, ensuring that the pressure drop is uniform across each position. The manifolds are equipped with individual control valves (stopcocks) that allow the analyst to independently adjust the flow rate for each sample. This technical control is vital for achieving the optimal linear velocity required for effective mass transfer between the liquid phase and the sorbent bed.

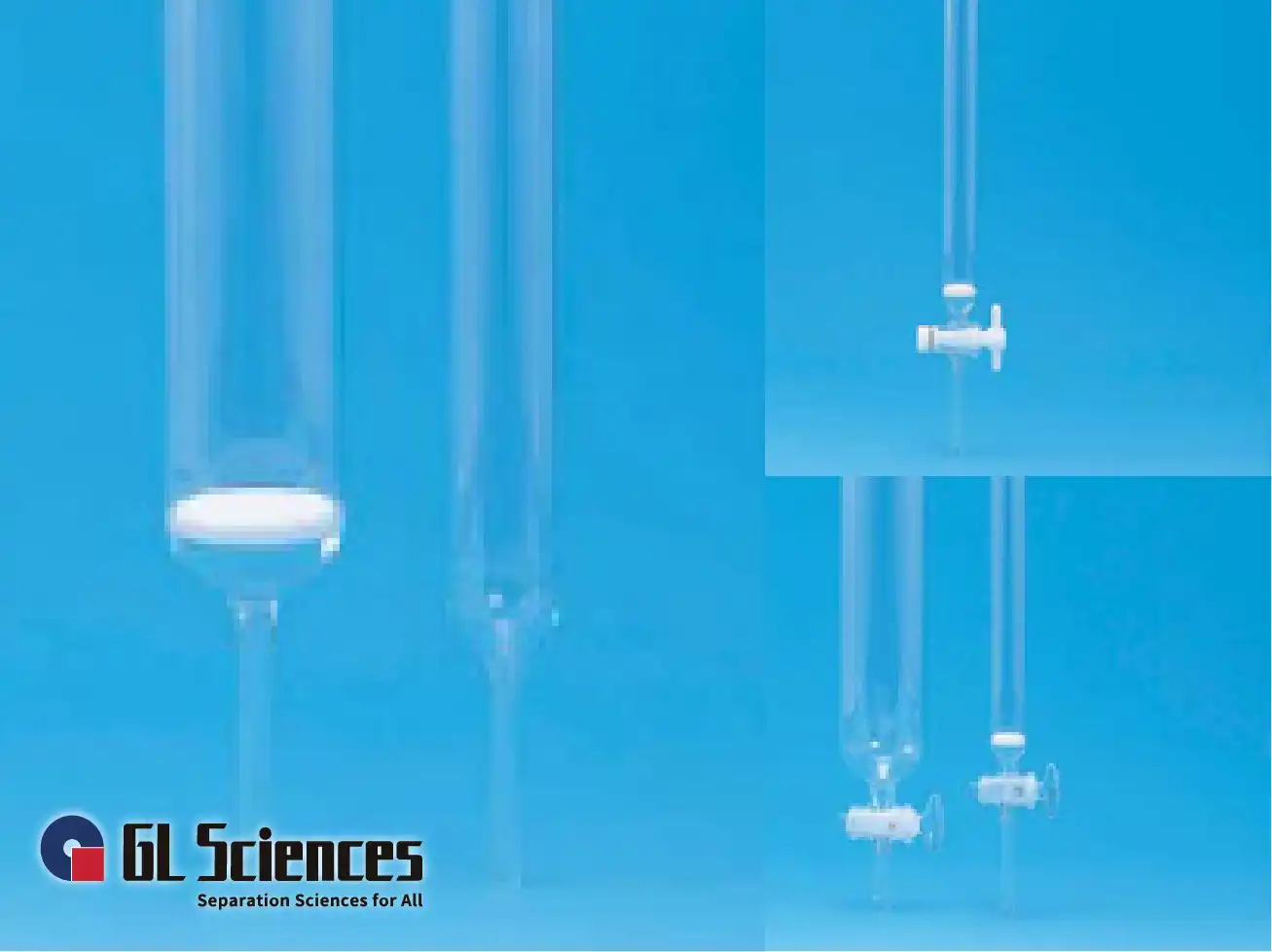

Specialized Glass SPE Cartridge Kits for Trace Analysis

To eliminate interference from plastic leachables, GL Sciences provides glass SPE cartridge kits. Technically, these kits utilize glass reservoirs and glass filters combined with PTFE rings to create an entirely inert flow path. This is a technical requirement for analyzing phthalate esters and environmental hormones where polypropylene hardware could introduce "ghost peaks" or cause sample adsorption. The modularity of the glass kit allows for volumes up to 100 mL, supporting diverse analytical needs.

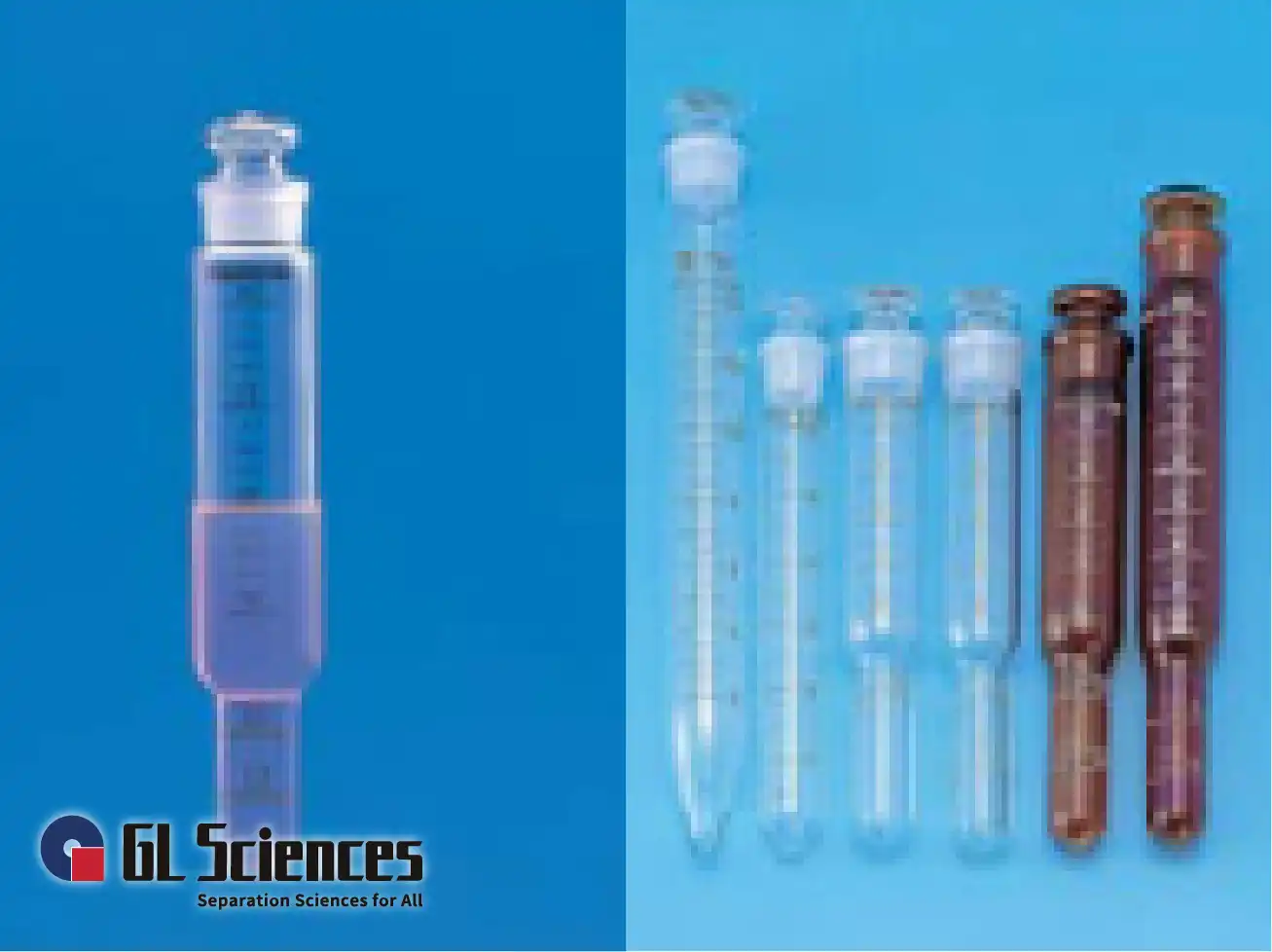

Calibrated Concentration Tubes for Precise Volume Measurement

Following elution, the determination of the final sample volume is critical for accurate quantification. GL Sciences provides concentration tubes (Spitz tubes) with precise graduations at 0.5 mL and 1.0 mL scales. Technically, these tubes are designed to fit directly into the vacuum manifold rack, minimizing sample transfer steps. The tapered bottom geometry ensures maximum recovery of the concentrated extract, reducing the risk of analyte loss during the final evaporation or nitrogen blow-down process.

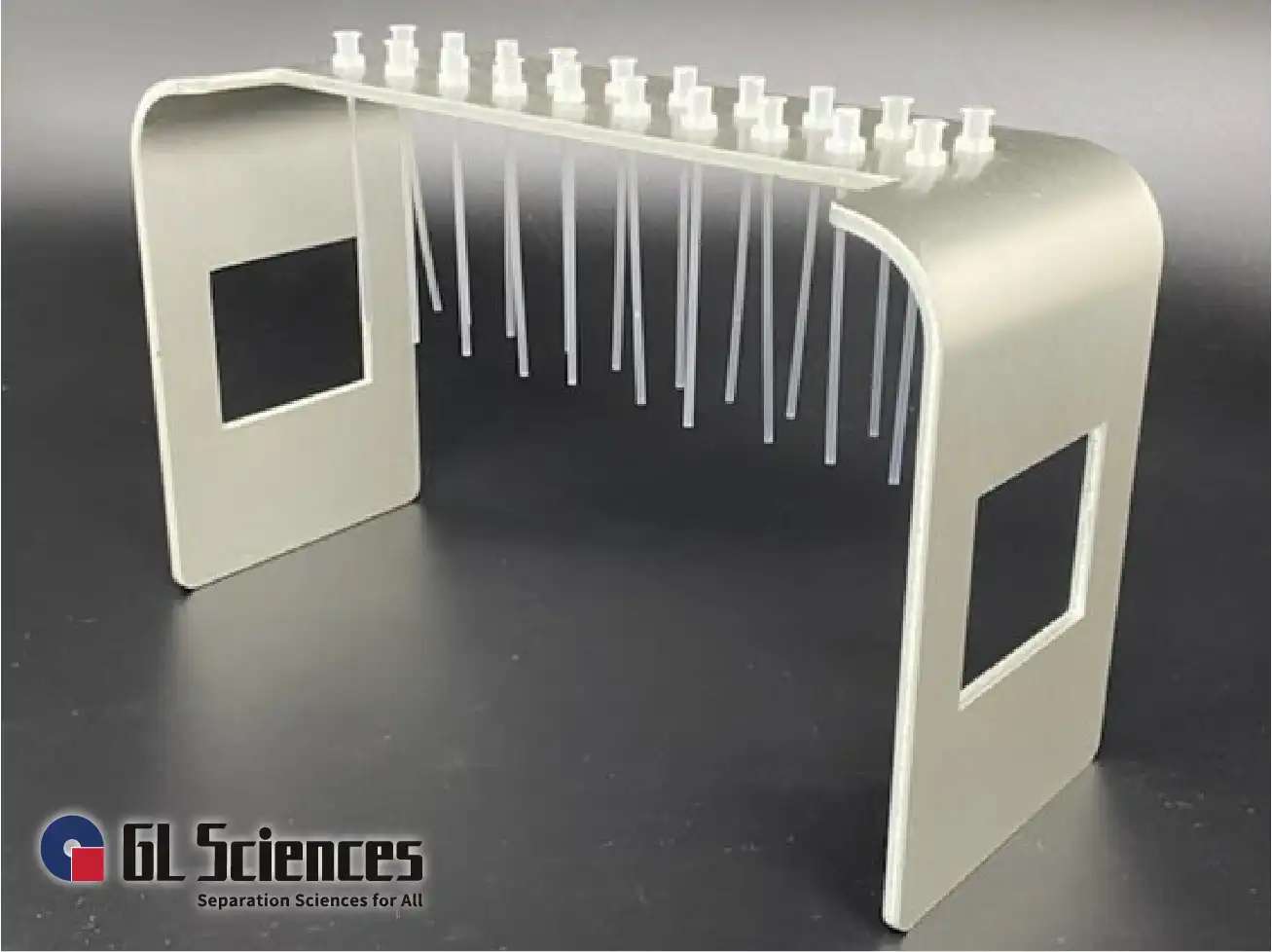

Gravity Flow Manifolds for Mycotoxin Cleanup

For methods where vacuum could cause volatile loss or when using immunoaffinity columns, gravity flow manifolds are technically superior. These manifolds are optimized for mycotoxin analysis, adhering to food safety notifications. Technically, they utilize delivery tips that improve flow velocity through capillarity while maintaining a simple, low-pressure environment. The adjustable height panels allow the system to accommodate various receiving vessels, from vials to eggplant-shaped flasks.

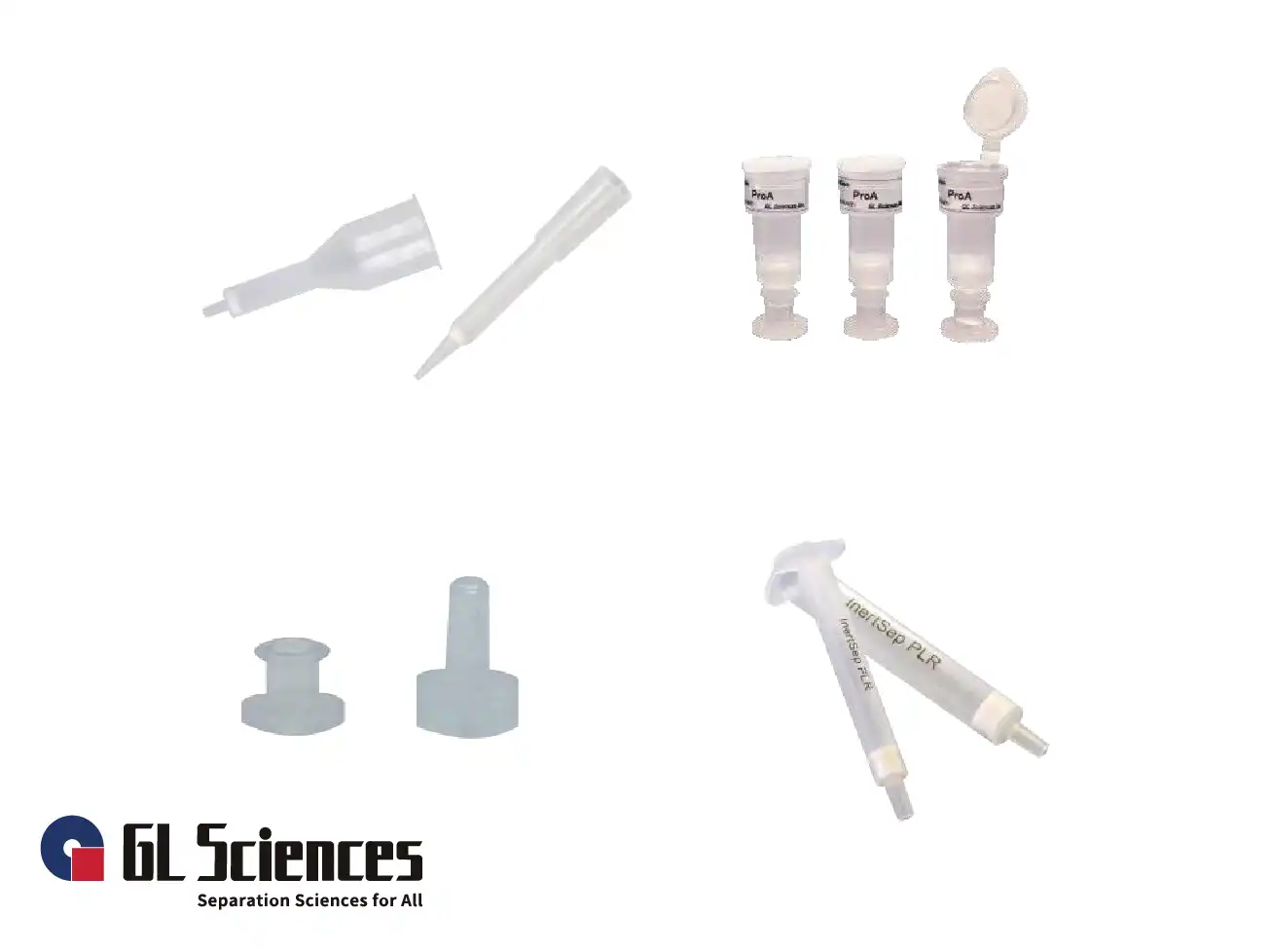

Empty Reservoirs and Large Volume Adapters

Processing large volumes of water requires technical solutions to expand the capacity of standard SPE cartridges. GL Sciences offers empty reservoirs and specialized adapters that allow for the direct connection of 25 mL, 50 mL, or even 200 mL reservoirs to small 1, 3, or 6 mL cartridges. Technically, these adapters provide a leak-proof seal, ensuring that the entire sample volume passes through the sorbent bed without bypassing, which is essential for achieving high enrichment factors in environmental trace analysis.

InertSep Accessories for Back-Flush Extraction

Certain complex matrices require back-flushing to prevent column clogging or to elute highly retained analytes. GL Sciences provides specialized connectors and holders specifically for back-flush applications. Technically, these accessories allow the flow direction to be reversed, pushing the eluent through the bottom of the cartridge. This technique is technically vital for recovering large molecules or particles trapped on the upper frit of the SPE bed, thereby improving overall recovery and column longevity.

Solvent-Resistant Stopcocks and Valve Assemblies

Flow control in SPE is technically dependent on the integrity of the valve assembly. GL Sciences utilizes Luer stop valves made from PTFE or high-grade polypropylene. Technically, these valves must be resistant to a wide range of organic solvents, including hexane, dichloromethane, and methanol. Precision machining ensures that the valves provide a fine-tuned drip rate, preventing "channeling" within the sorbent and ensuring that the sample has sufficient residence time for optimal chemical interaction.

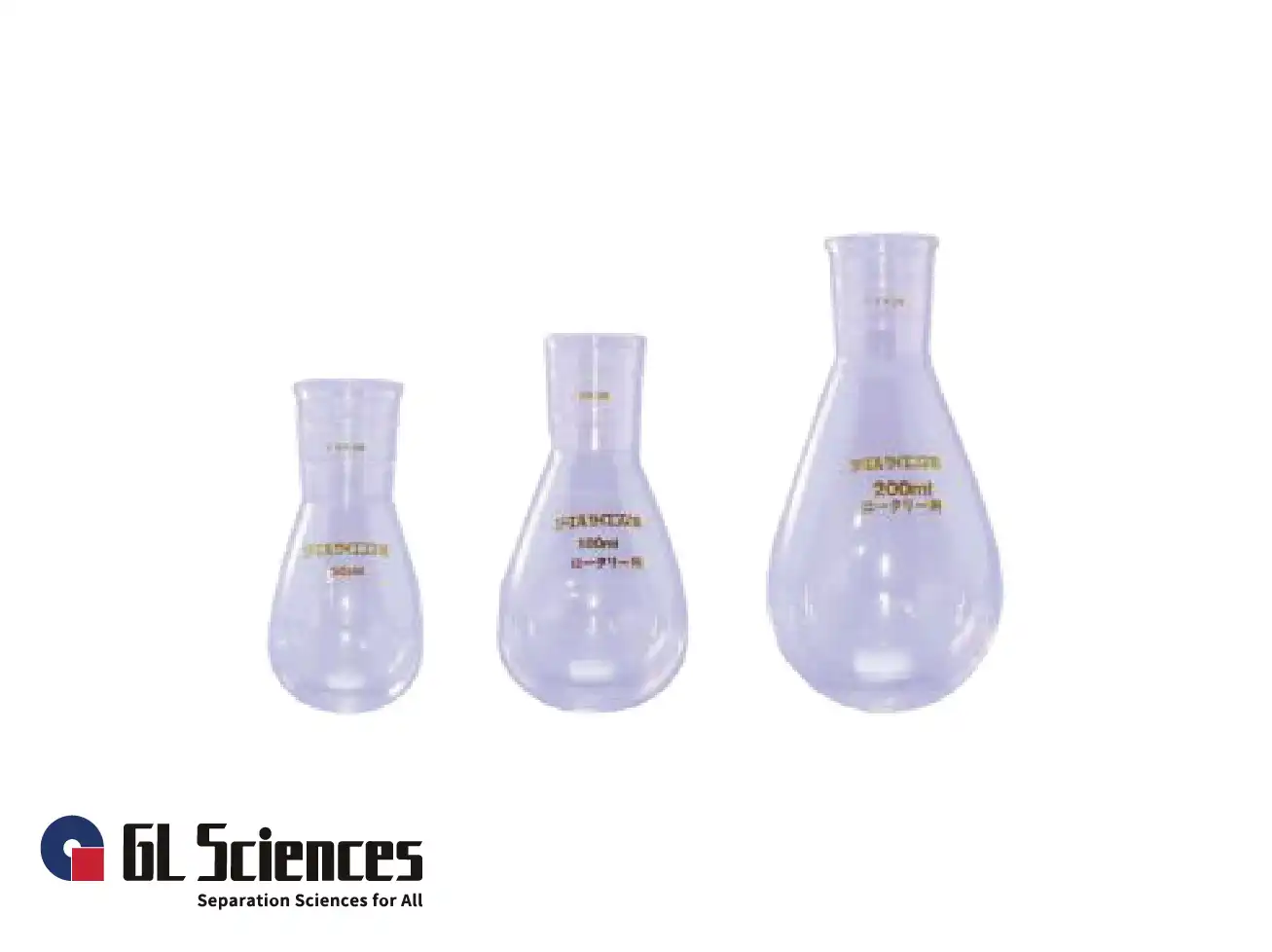

Modular Racks and Waste Liquid Management

Efficient laboratory workflow requires technical organization of the receiving end. GL Sciences manifolds feature adjustable racks that can be configured for different test tube sizes and eggplant-shaped flasks. Technically, the inclusion of waste liquid funnels and trays prevents cross-contamination between ports. This organized waste management is essential in high-throughput environments where multiple samples with different concentrations are processed simultaneously, protecting the integrity of each individual extract.
