Essential GC and GC/MS Accessories
|
for High-Precision Gas Chromatography
GL Sciences GC and GC/MS Accessories

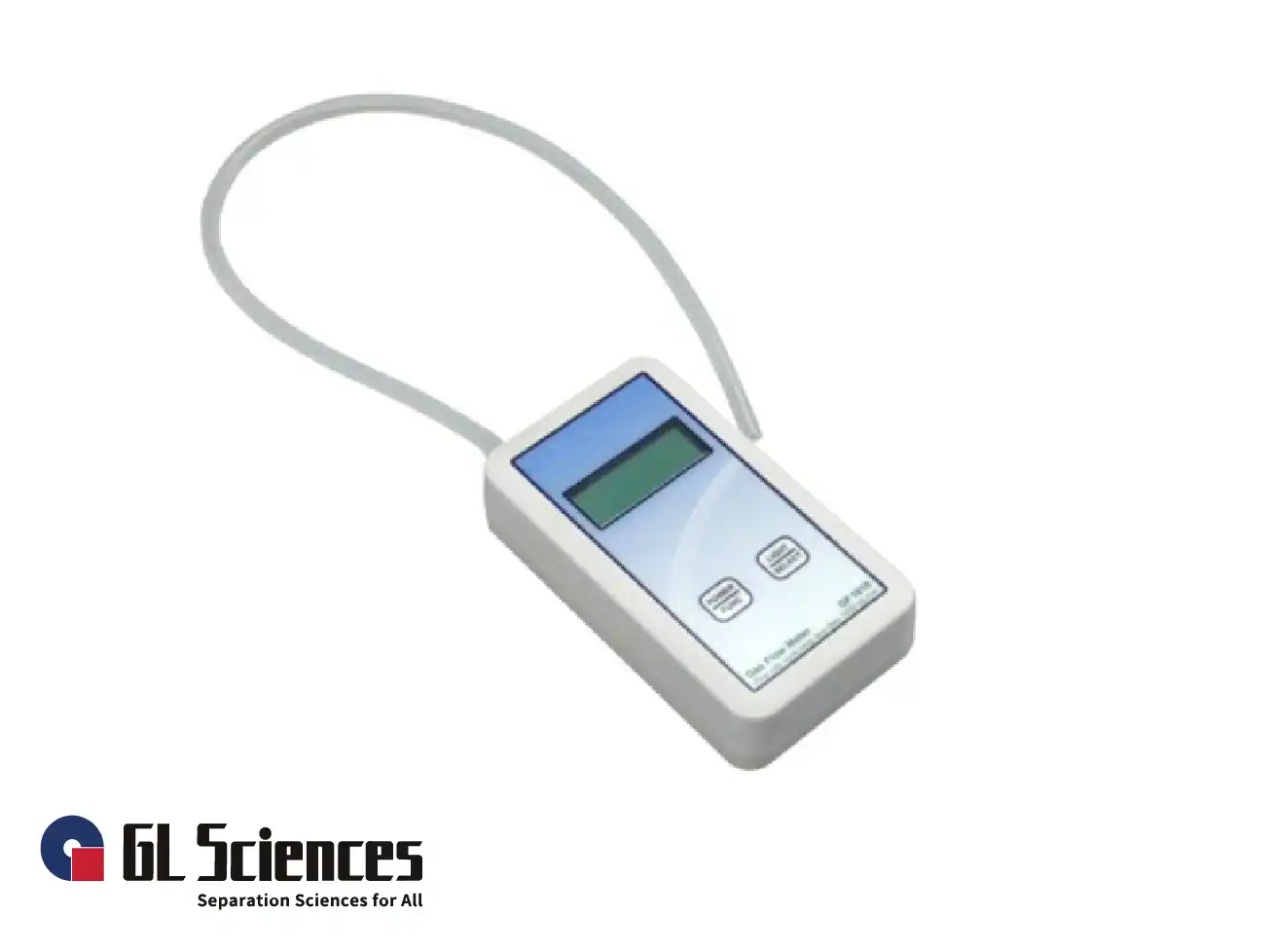

The range extends to gas management and column installation tools, including digital flowmeters and leak detectors that provide precise diagnostic capabilities. High-purity gas filters, featuring indicator systems, technically guarantee carrier gas quality of >99.9999%, which is vital for protecting sensitive detectors like MS and ECD.
Furthermore, specialized ferrules—ranging from graphite to metal-composite materials—ensure leak-free connections across various instrument brands. These technical solutions allow analysts to maintain system uptime and ensure that the chromatographic results are a true reflection of the sample composition rather than system artifacts.
Advanced Deactivation Technology for Inlet Liners
Inlet liners serve as the primary vaporization chamber for samples. Technically, GL Sciences applies a high-temperature deactivation process (up to 420°C) to the glass surface. This treatment neutralizes silanol groups that cause peak tailing or degradation of sensitive analytes like pesticides. These liners are available in various geometries—including split, splitless, and focus designs with fixed quartz wool—to optimize sample transfer and minimize discrimination based on molecular weight, ensuring accurate quantification for trace-level analysis.

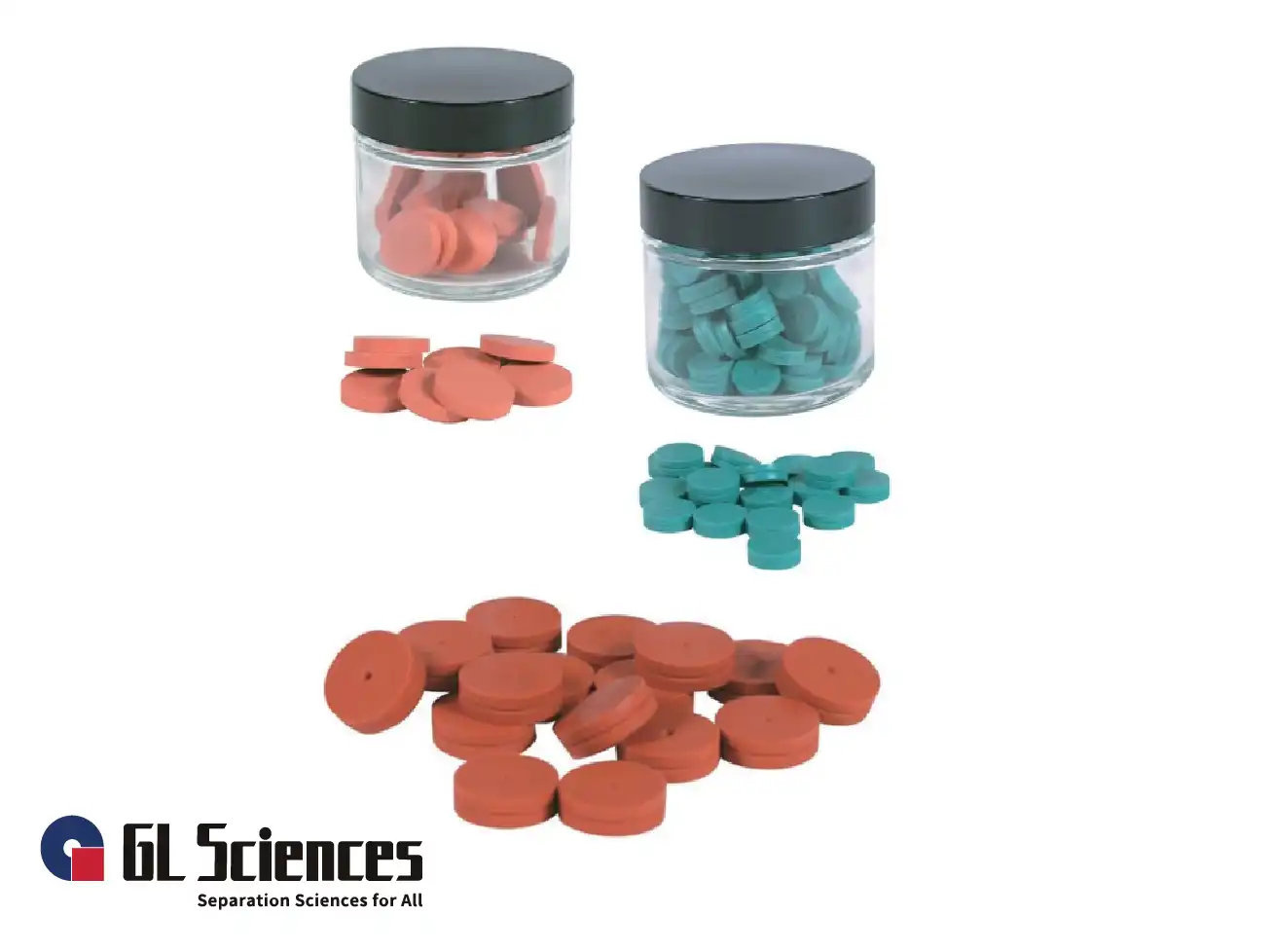

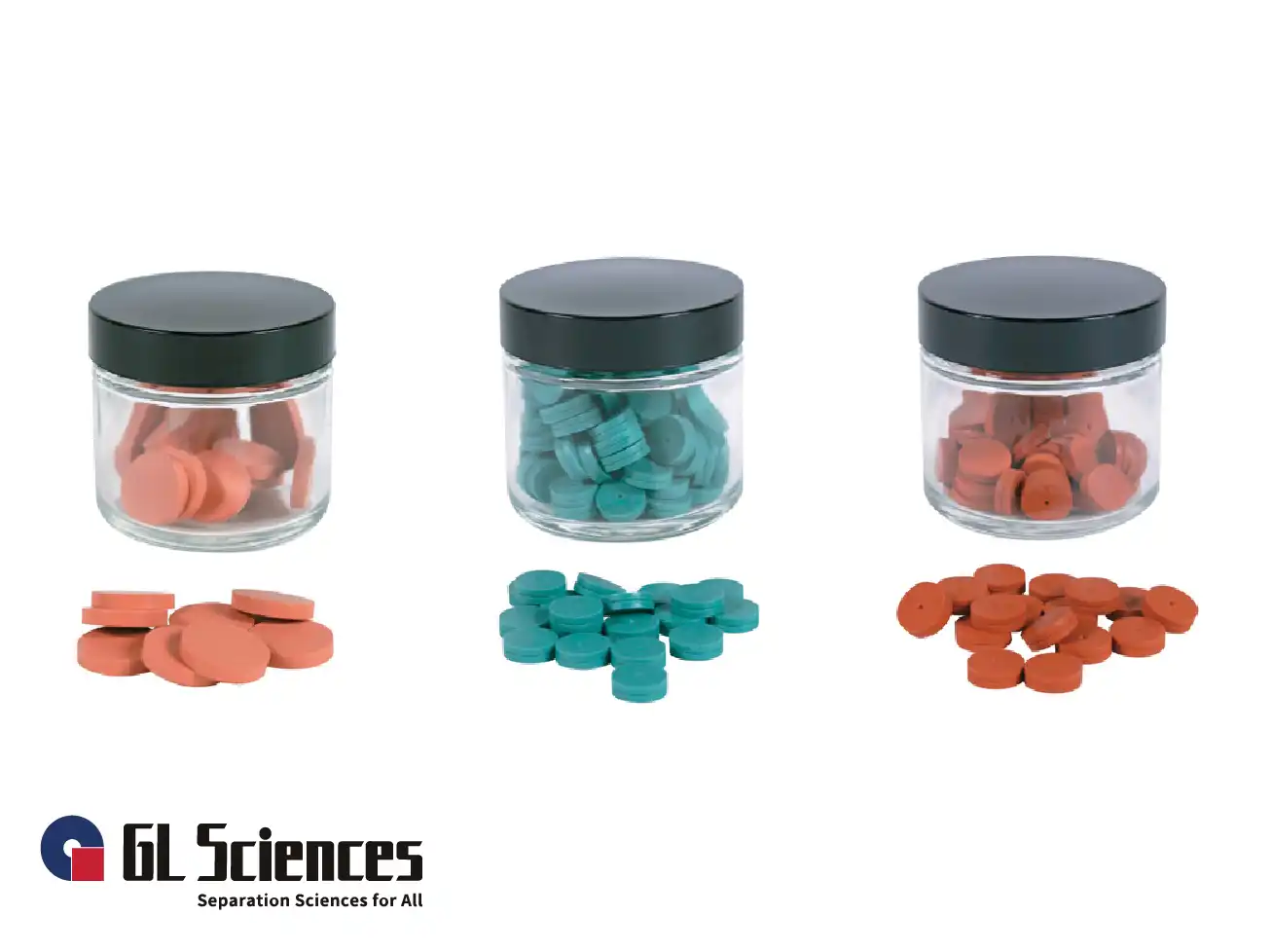

Ultra-Low Bleed Septa for High-Temperature Stability
Septa are technically critical for maintaining system pressure while allowing needle penetration. GL Sciences' premium septa are precision-molded with a center-guide design to minimize coring and tearing. These components are preconditioned to provide ultra-low bleed profiles, which is essential for GC/MS systems to prevent background ion contamination. With maximum operating temperatures reaching 400°C, they ensure a reliable seal even during high-temperature injection protocols required for heavy hydrocarbons.
High-Purity Gas Filtration and Monitoring Systems
To protect the stationary phase and sensitive detectors, carrier gas must be free of oxygen, moisture, and hydrocarbons. Technically, GL Sciences' gas filters achieve >99.9999% purity through multi-stage traps. These filters often include visual indicators that change color when the adsorbent is saturated. This gas management is supported by digital flowmeters and electronic leak detectors, which provide a technical baseline for system troubleshooting and ensure that the fluidic path is free of atmospheric contamination.
Precision Ferrules for Leak-Free Column Connections
Ferrules are the technical interface between the capillary column and the injector or detector. GL Sciences offers a wide range of materials, including 100% Graphite for high flexibility and 15% Graphite/85% Vespel for high-pressure stability and vacuum integrity in MS interfaces. For advanced applications, metal-based finger-tight ferrules allow for tool-free installation while maintaining a permanent, leak-free seal that does not require retightening after thermal cycling, which is a common technical issue with traditional materials.
Specialized Capillary Column Installation Tools
Accurate column installation is technically dependent on clean cuts and precise positioning. GL Sciences provides comprehensive tool sets containing tungsten carbide knives, ceramic cutters, and pin vise drills. These tools ensure that the column end is cut perfectly square without burrs or silica shards that could cause peak distortion. Technically, the inclusion of ferrule removers and specialized spanners ensures that maintenance can be performed without damaging the sensitive injector threads or the fused silica tubing.
High-Reproducibility Autosampler Syringes
The injection of samples into the GC system requires high volumetric accuracy and zero dead volume. Technically, GL Sciences' syringes are designed with plungers that travel to the very tip of the needle to eliminate residual volume. For ultratrace analysis, specialized syringes with super-elastic plungers or PTFE-sleeved plungers are available to prevent bending and ensure smooth operation over thousands of cycles. These syringes are technically optimized for compatibility with various major autosampler brands to ensure consistent sample delivery.

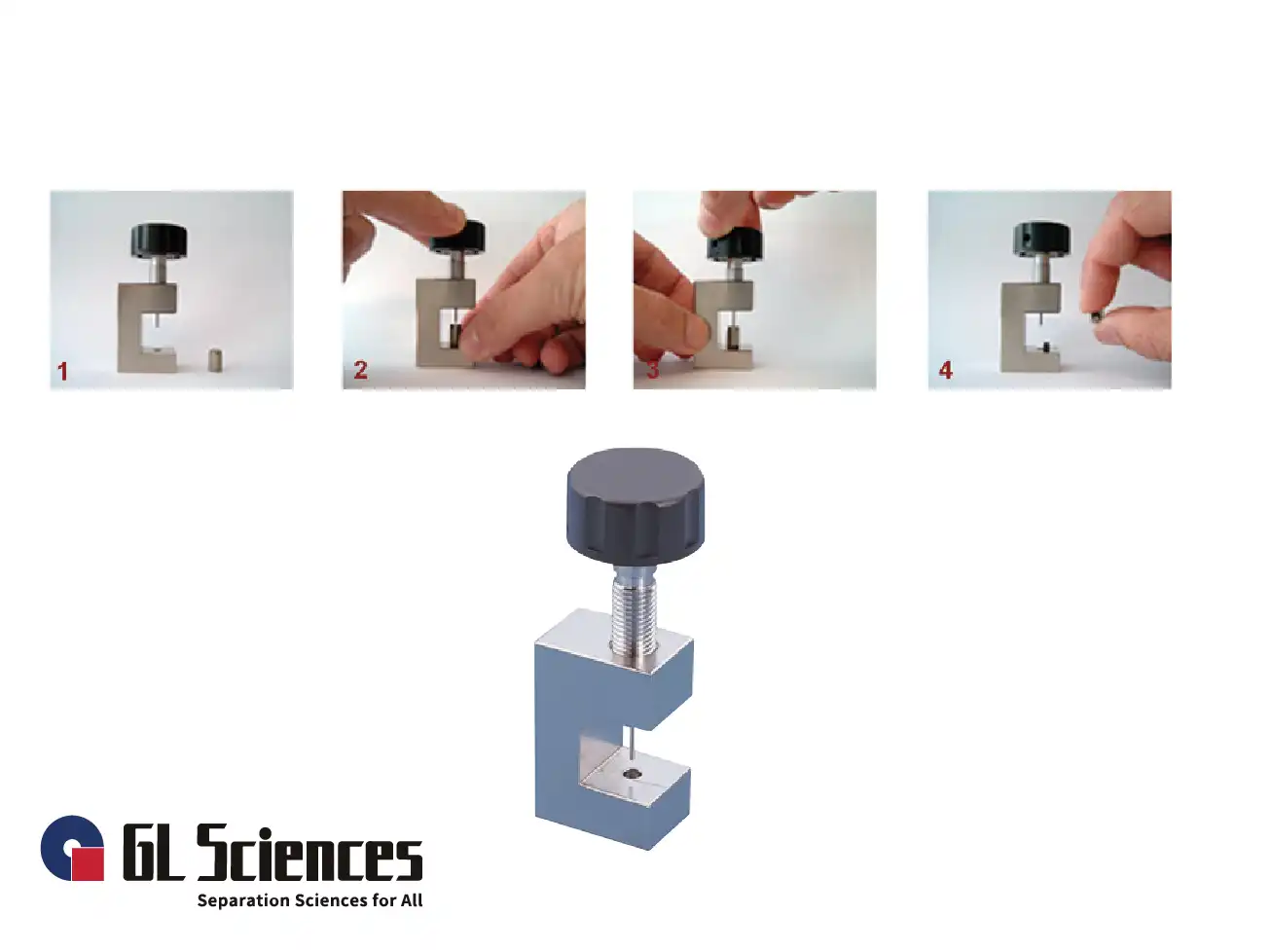

Injector and FID Maintenance Accessories
Maintaining the ion source and detector components is technically necessary for long-term sensitivity. GL Sciences offers specialized cleaning kits for MSD ion sources and FID maintenance tools. This includes quartz, glass, and PTFE wool options for liner packing, as well as specialized picks for removing septum fragments. By providing the technical means to clean and refresh the sample path and detector components, these accessories help prevent the accumulation of non-volatile residues that lead to baseline noise and ghost peaks.
Capillary Column Support and Identification Accessories
Proper management of the column within the oven is technically important for preventing mechanical stress and identifying methods. GL Sciences provides heat-resistant column tags and nameplates that can withstand temperatures up to 450°C. These accessories allow laboratories to track column usage and method specifications without the risk of labels melting or releasing volatile organic compounds (VOCs) that could interfere with the analysis. Additionally, specialized column end-capping tools are available to seal columns during storage, preventing the oxidation of the stationary phase.
